Tomato Router Setup Guide

Tomato Router Smart DNS Setup Guide

Follow this simple guide to set up UnGeo Smart DNS on your Tomato router using the built-in router admin settings.

Tomato Router Smart DNS setup background

Before You Start

Before changing your DNS settings, make sure your UnGeo account is active and your current IP address is added in your Client Area. If that is already done, continue with the DNS setup below.

Don’t have an account yet?

Choose a plan and create your UnGeo account before setting up DNS.

Get Started ›

Add your current IP address

Add your current IP address in the Client Area to allow UnGeo to work properly.

Once both are done, continue with the DNS setup steps.

Step-by-Step Setup Guide

Open Tomato Router Admin Panel

Open a browser on a device connected to your Tomato router and go to your router admin address. The default address is usually 192.168.1.1.

Log In to Your Router

Enter your Tomato router username and password to access the admin panel.

Open Network Settings

Go to Basic, then select Network.

Find DNS Settings

Look for Static DNS, DNS Server, or LAN Static DNS depending on your Tomato firmware version.

Change DNS Server to Manual

If your interface shows a DNS Server option, set it to Manual.

Enter Your UnGeo Smart DNS servers

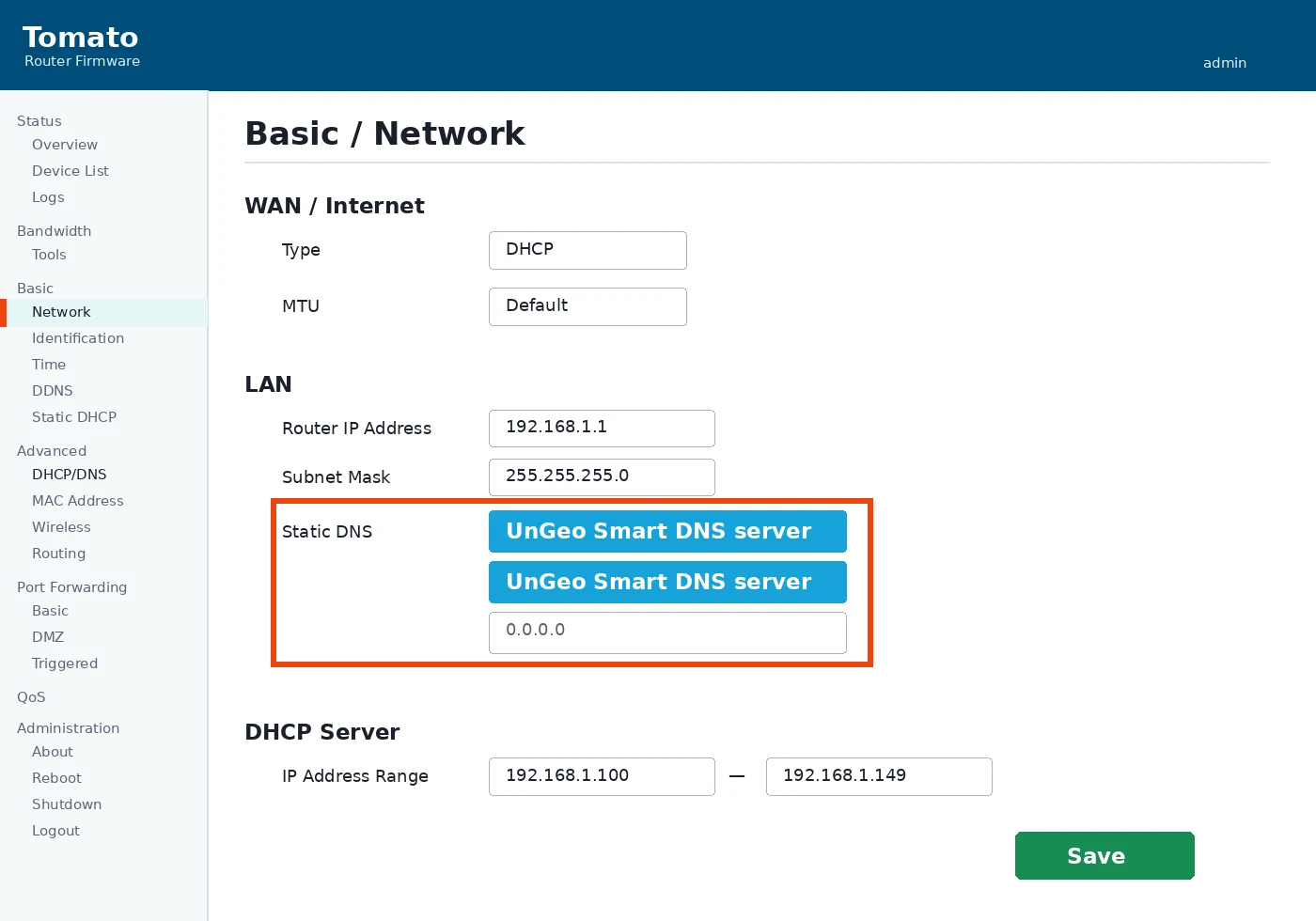

In the Static DNS 1 field, enter the primary UnGeo Smart DNS server shown in your Client Area. In the Static DNS 2 field, enter the secondary UnGeo Smart DNS server. Leave Static DNS 3 empty or set it to 0.0.0.0 if your Tomato version requires a value.

Save Your Changes

Click Save to store the new DNS settings.

Open DHCP/DNS Settings

Go to Advanced, then select DHCP/DNS.

Check DNS Options

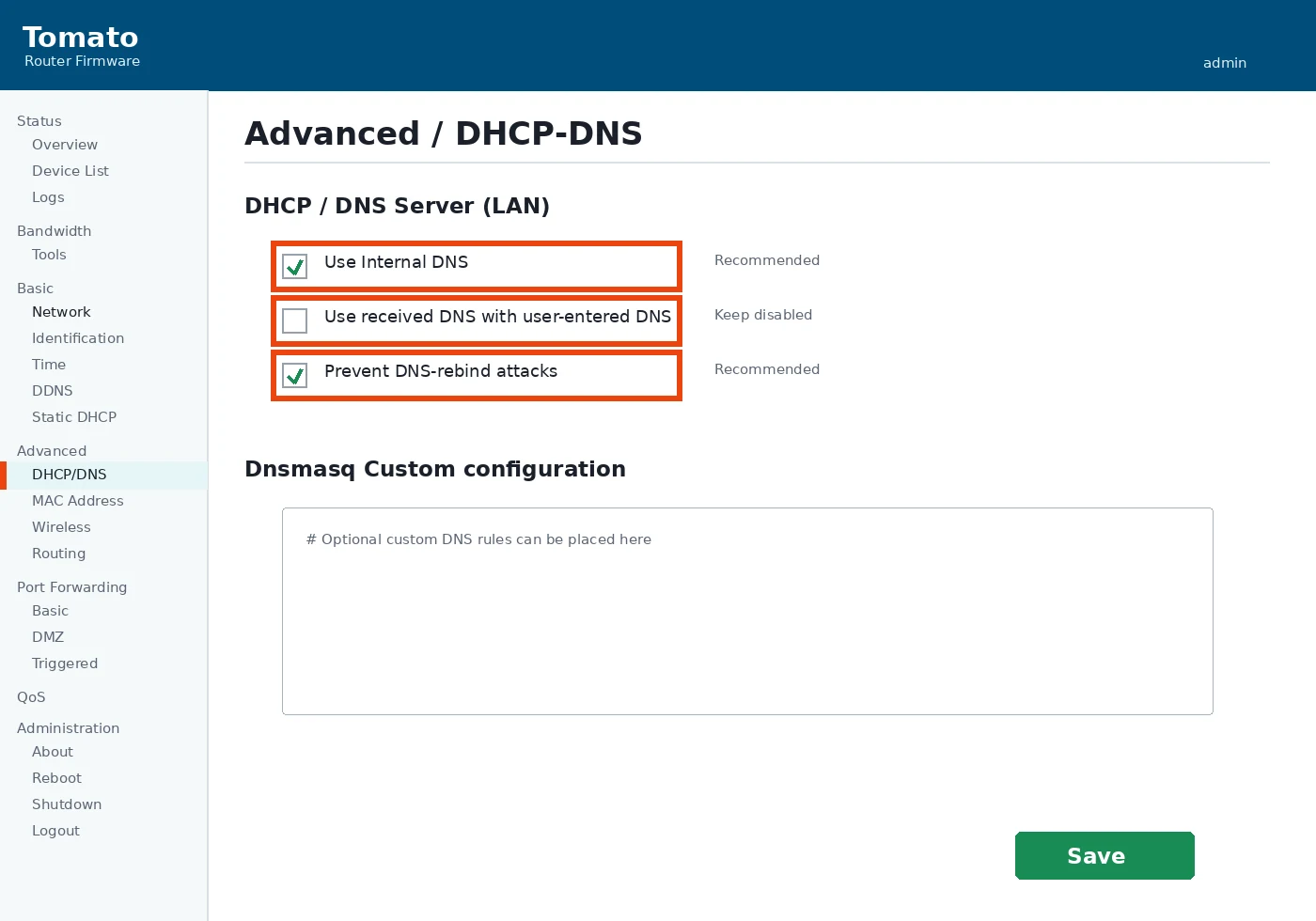

If available, enable Use Internal DNS and disable Use received DNS with user-entered DNS so Tomato does not mix ISP DNS with your UnGeo Smart DNS servers.

Save and Restart Router

Click Save, then restart your Tomato router so the new DNS settings are applied to your network.

Restart Connected Devices

Restart the devices connected to your Tomato router so they receive the updated DNS settings.

You’re All Set!

Your Tomato router is now ready to use UnGeo Smart DNS across your home network.

Setup Screenshots

Follow the screenshots below if you prefer a visual guide.

↗ Click image to view larger

‹ Swipe or scroll through all steps ›

Step 1 of 2

Tip: Screens may look slightly different depending on your device version, network adapter, or system language.

How to Check If It’s Working

Visit the UnGeo DNS Check page to verify whether your device is using UnGeo Smart DNS correctly.

Go to DNS Check →

Troubleshooting

Make sure your device is connected to the Tomato router. Try 192.168.1.1, 192.168.0.1, or the router IP address shown in your network settings.

Open Basic → Network and look for Static DNS, LAN Static DNS, or DNS Server. Menu names can vary between Tomato, Advanced Tomato, and FreshTomato.

Open Advanced → DHCP/DNS and disable Use received DNS with user-entered DNS if your firmware provides this option. Then save and restart the router.

Restart your Tomato router and reconnect your devices to the network. Some devices may keep old DNS settings until they reconnect.

Make sure your UnGeo account is active, your current IP address is added in the Client Area, and the UnGeo Smart DNS servers were entered correctly.

Visit Support Center →

FAQ

Yes. Tomato routers can use UnGeo Smart DNS by manually changing the Static DNS fields under Basic → Network.

Open Basic → Network and look for Static DNS, LAN Static DNS, or DNS Server depending on your Tomato firmware version.

No. In most cases, enter the two UnGeo Smart DNS servers in Static DNS 1 and Static DNS 2. Leave Static DNS 3 empty or set it to 0.0.0.0 if required.

Yes, if your Tomato firmware provides this option. It helps the router handle DNS properly for connected devices.

Yes. Restarting the Tomato router helps apply the new DNS settings and refresh connected devices.
